V-LISN CISPR 16-1-2

NSLK 8117 - Line Impedance Stabilisation Network



 NEW

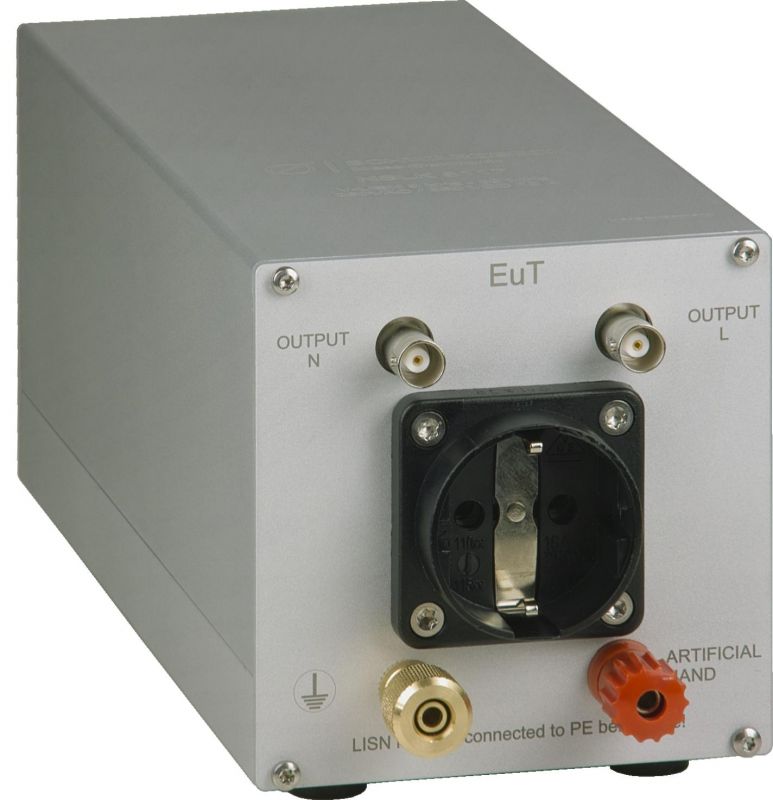

  • NSLK 8117 front

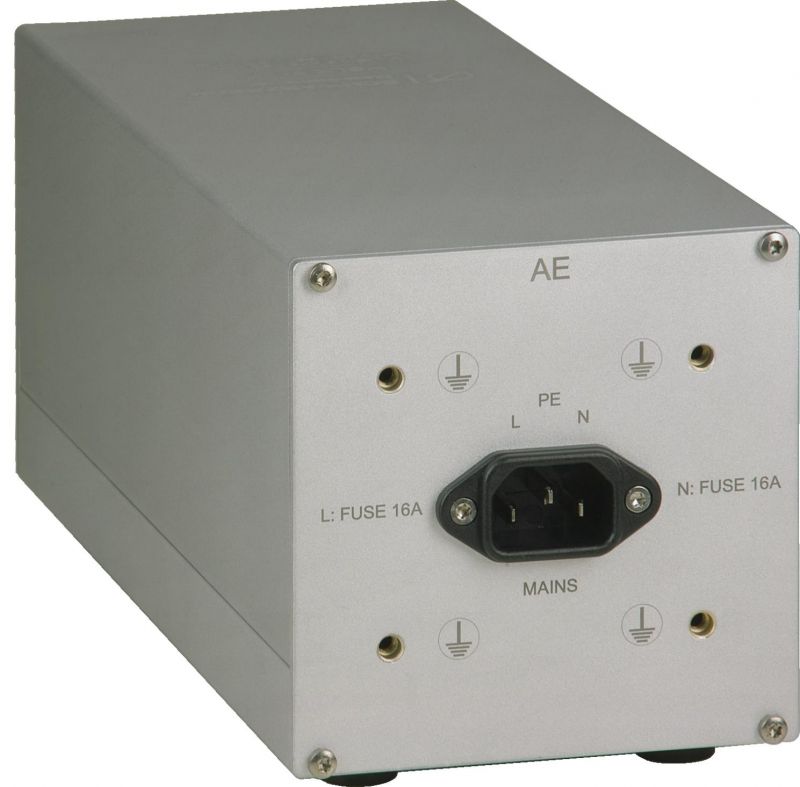

  • NSLK 8117 rear



  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. Current:

2 x 10 A
  Max. Voltage: 250 VAC 50/60 Hz
350 VDC
  Supply cable: IEC Appliance Inlet C14
  Connector for EuT:

CEE 7/4 Type F (Schuko) socket
  Connector for „artificial hand“: 4 mm laboratory socket with screw terminal 6 mm, not removable
  Connector to EMI receiver: BNC socket 50 Ω
  Dimensions housing (WxHxD): 105 mm x 108 mm x 263 mm
  Standard: CISPR 16-1-2



NSLK 8127 - Line Impedance Stabilisation Network

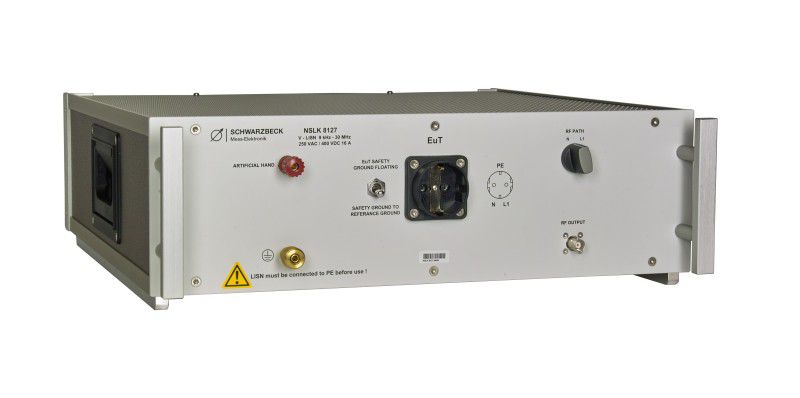

  • NSLK 8127 Netznachbildung




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. Current:

2 x 16 A
  Max. Voltage: 250 VAC 50/60 Hz
400 VDC
  Supply cable: hard-wired three-wire connection cable with CEE 7/4 Type F (Schuko) plug
  Connector for EuT:

CEE 7/4 Type F (Schuko) socket
  Connector for „artificial hand“: 4 mm laboratory socket with screw terminal 6 mm, not removable
  Connector to EMI receiver: BNC socket 50 Ω

  Lenght: 470 mm
  Width: 445 mm
  Height: 145 mm
  Weight: 9.5 kg


  Standard: CISPR 16-1-2



NSLK 8126 - Line Impedance Stabilisation Network

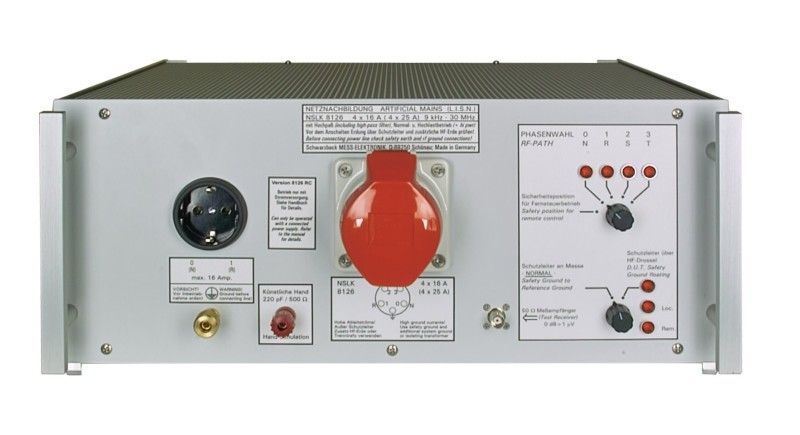

  • Schwarzbeck NSLK8126 RC




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. Current:

2 x 16 A CEE 7/4 Type F (Schuko socket) and
4 x 16 A IEC 60309 3L+N+PE 16 A (CEKON-socket)
  Max. Voltage: 250 VAC 50/60 Hz
400 VDC
  Supply cable: Cable with CEKON plug
  Connector for EuT:

CEE 7/4 Type F (Schuko socket)/
IEC 60309 3L+N+PE 16 A (CEKON-socket)
  Connector for „artificial hand“: 4 mm laboratory socket with screw terminal 6 mm, not removable
  Connector to EMI receiver: BNC socket 50 Ω

  Lenght: 405 mm
  Width: 448 mm
  Height: 180 mm
  Weight: 12.5 kg


  Standard: CISPR 16-1-2



NSLK 8128 - Line Impedance Stabilisation Network





  • Schwarzbeck NSLK8128




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. Current
IEC 60309:		 4 x 32 A
  Max. Current  CEE 7/4 socket: 16 A
  max. Voltage: 250 VAC 50/60 Hz
400 VDC
  Supply cable: hard-wired five-wire connection cable with CEE plug (IEC 60309)
  Connector for EuT: CEE 7/4 Type F (Schuko) socket
and IEC 60309  3L+N+PE 32 A CEE socket
  Connector for "artificial hand": 4 mm laboratory socket with screw terminal 6 mm,
not removable
  Connector to EMI-receiver: BNC socked, 50 Ω

  Length: 470 mm
  Width: 450 mm
  Height: 370 mm
  Weight: 34.2 kg (38.5 kg RC)


  Standard: CISPR 16-1-2



NSLK 8163 - Line Impedance Stabilisation Network

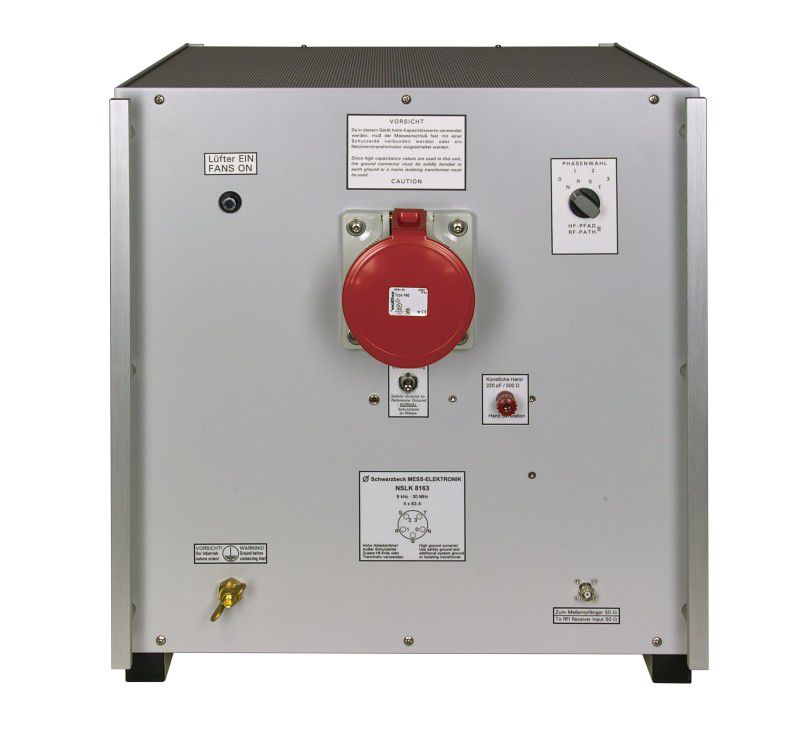

  • Schwarzbeck NSLK 8163 - Line Impedance Stabilisation Network

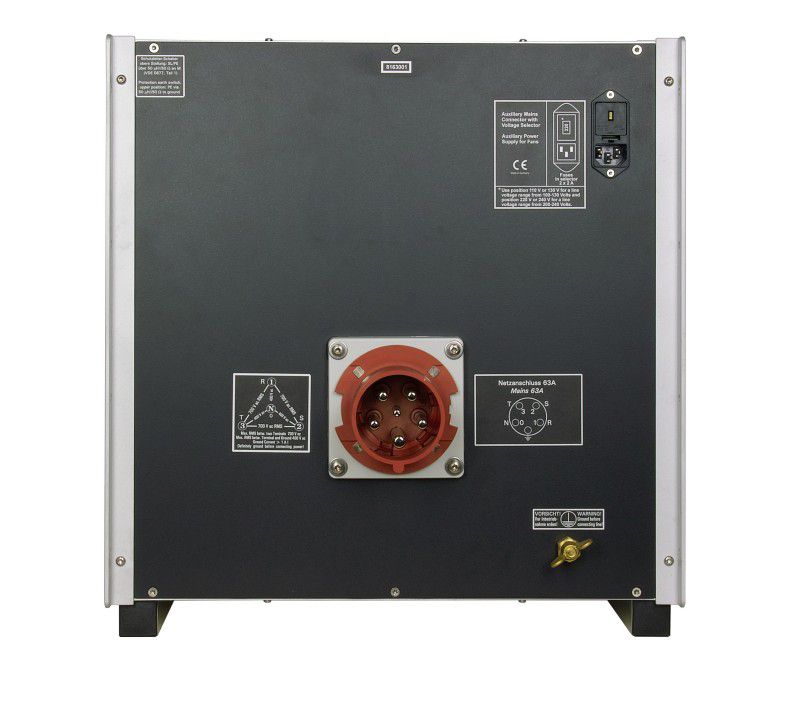

  • Schwarzbeck NSLK8163 - Line Impedance Stabilisation Network




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. continuous current CEE: 4 x 63 A
  max. Voltage:

400 / 700 VAC
630 VDC
  Supply cable: CEE plug (IEC 60309)
  Connector for EuT: CEE socket (IEC 60309  3L+N+PE 63 A)
  Connector for "artificial hand": 4 mm laboratory socket with screw terminal 6 mm,
not removable
  Connector to EMI-receiver: BNC socked, 50 Ω

  Length: 650 mm
  Width: 450 mm
  Height: 480 mm
  Weight: 40.8 kg


  Standard: CISPR 16-1-2



NNLK 8121 - Line Impedance Stabilisation Network

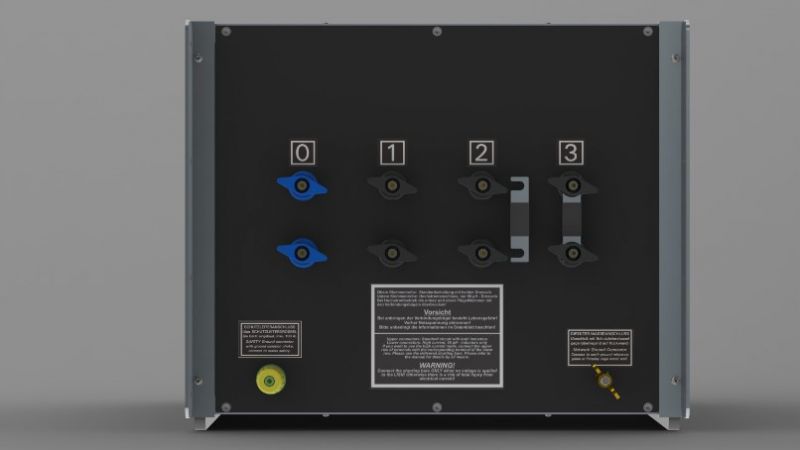

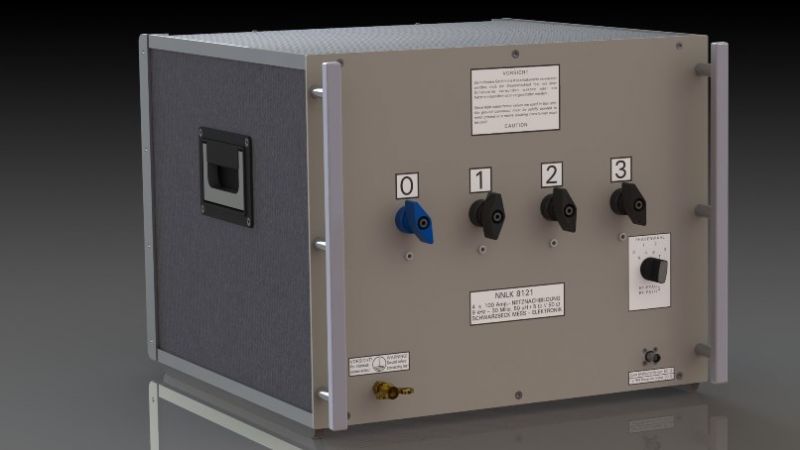

  • Schwarzbeck NNLK 8121 V-LISN
  • Schwarzbeck NNLK8121 V-LISN




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Impedance simulation: (50 µH+5 Ω) || 50 Ω
  Max. Voltage: 250 VAC 50/60 Hz
400 VDC
   Max. Current:  4 x 50 (100*) A
  Mains terminals: 4 wing terminals
  Terminals for E.u.T.: 4 wing terminals

  Length: 480 mm
  Width: 450 mm
  Height: 370 mm


Weight:

 33 kg

  Standard: CISPR 16-1-2



NNLK 8122 - Line Impedance Stabilisation Network

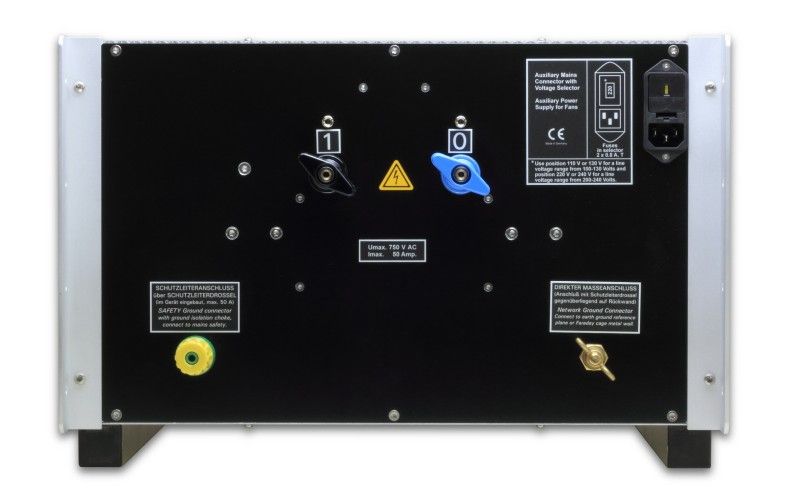

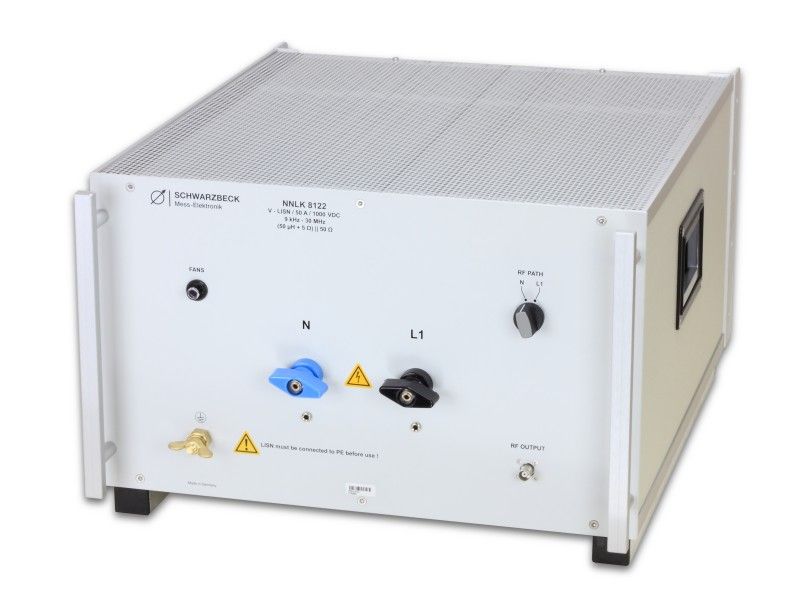

  • NNLK 8122

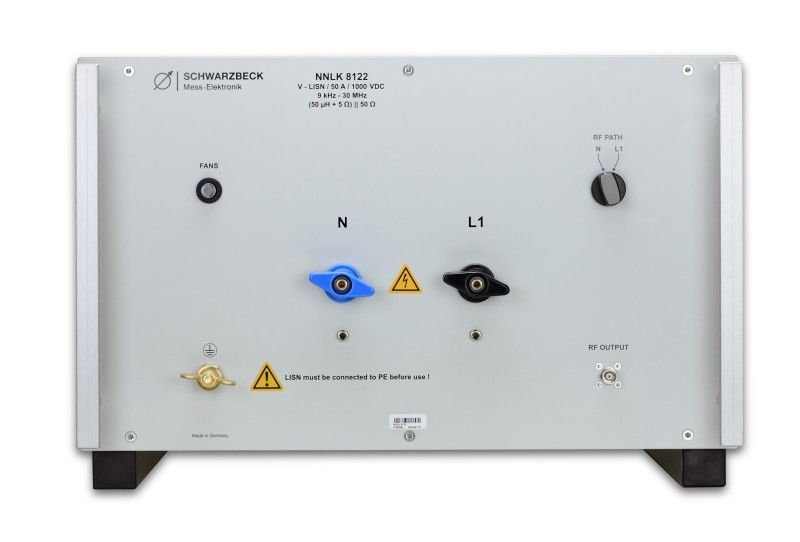

  • NNLK 8122_1
  • NNLK 8122_2




  Topology: V-LISN
  Frequency Range: 9 kHz - 30 MHz
  Pre-filter choke: 250 µH
  Impedance simulation: 50 Ω || (50 µH + 5 Ω)
  Max. Voltage: 1000 VCD
  750 VAC 50/60 Hz
   Max. Current:  50 A





  Length: 550 mm
  Width: 450 mm
  Height 290 mm
  Weight: 22.2 kg


  Standard: CISPR 16-1-2

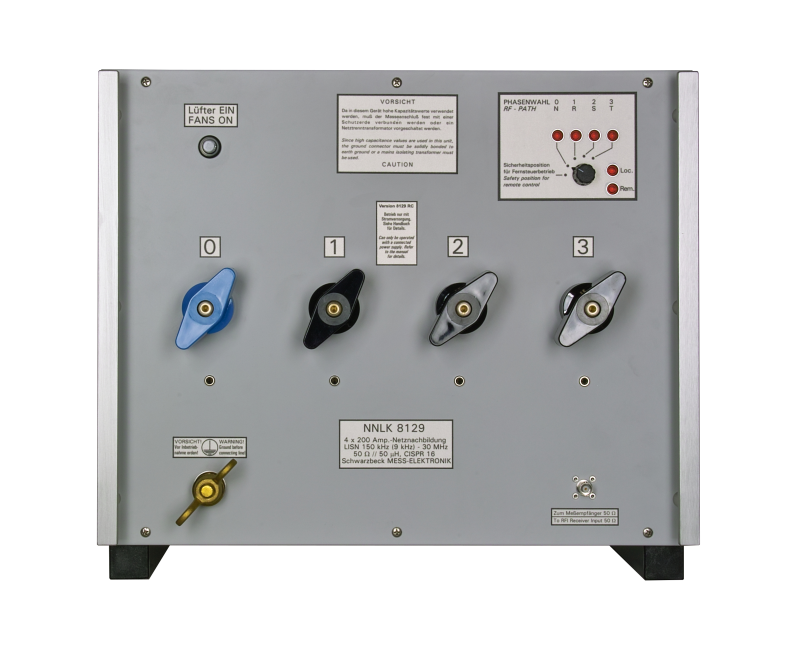

NNLK 8129 - Line Impedance Stabilisation Network





  • Schwarzbeck NNLK 8129

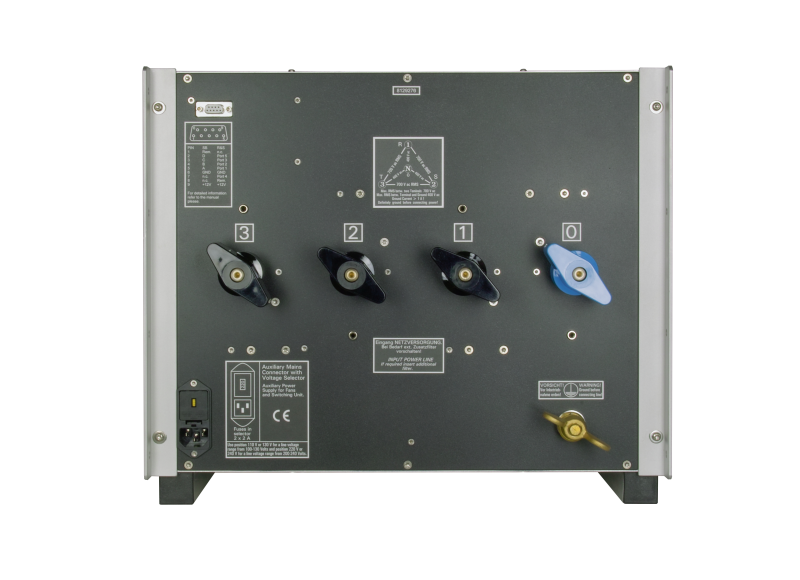

  • Schwarzbeck NNLK 8129_back




  Topology: V-LISN
  Frequency Range: (9 kHz) 150 kHz - 30 MHz
  Impedance simulation: 50 µH || 50 Ω
  Max. Voltage:

250 VAC 50/60 Hz
400 VDC
   Max. Current:  4 x 200 (300) A
  Mains terminals: 4 wing terminals
  Terminals for E.u.T.: 4 wing terminals

  Length: 604 mm
  Width: 446 mm
  Height: 355 mm


Weight:

 30.5 kg

  Standard: CISPR 16-1-2



NNLK 8129-2 HV - Line Impedance Stabilisation Network

 NEW

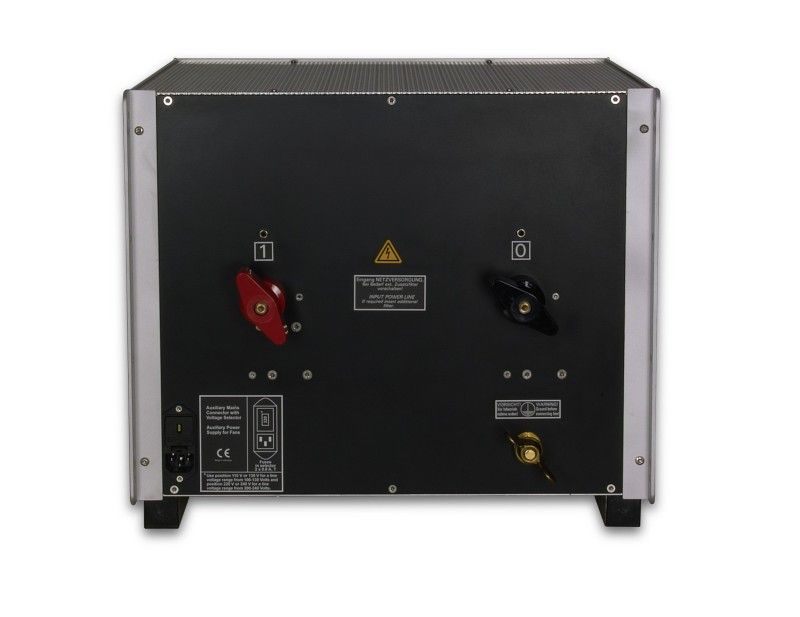

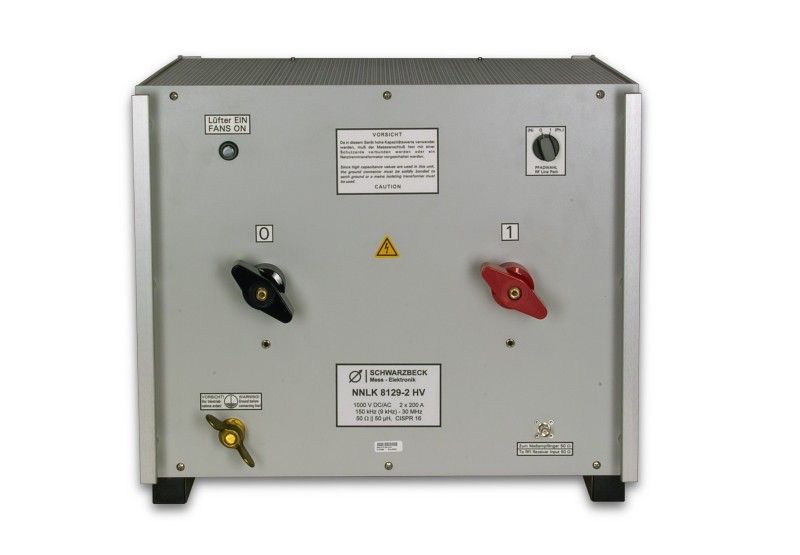

  • NNLK 8129-2 HV
  • NNLK 8129-2 HV_R




  Topology: V-LISN
  Frequency Range: (9 kHz) 150 kHz - 30 MHz
  Impedance simulation: 50 µH || 50 Ω
  Max. Voltage:

1000 VAC 50/60 Hz
1000 VDC
   Max. Current:  2 x 200 (300) A
  Mains terminals: Wing terminals 12 mm, removable
  Terminals for E.u.T.: Wing terminals 12 mm, removable

  Length: 520 mm
  Width: 445 mm
  Height: 385 mm


Weight:

 ~22 kg

  Standard: CISPR 16-1-2



NNLK 8130 - Line Impedance Stabilisation Network





  • NNKL8130
  • NNKL_8130




  Topology: V-LISN
  Frequency Range: (9 kHz) 150 kHz - 30 MHz
  Impedance simulation: 50 µH || 50 Ω
  Max. Voltage: 250 VAC 50/60 Hz
400 VDC
   Max. Current:  4 x 400 A  (with fans ON)
  Mains terminals: 4 wing terminals
  Terminals for E.u.T.: 4 wing terminals

  Length: 738 mm
  Width: 448 mm
  Height: 473 mm


Weight:

 ~55 kg

  Standard: CISPR 16-1-2



NNLK 8140 - V-LISN

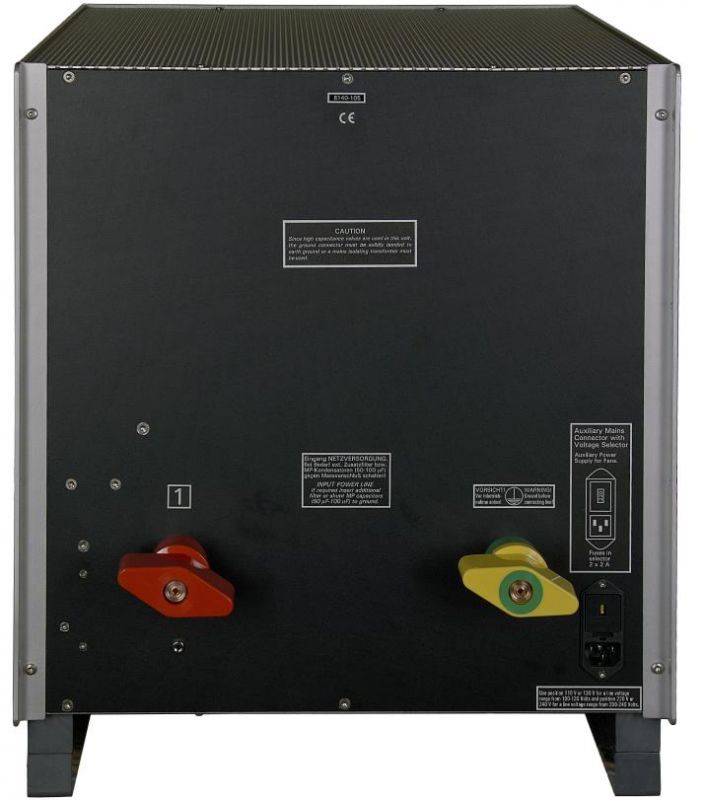

  • Schwarzbeck NNLK 8140 V-LISN
  • Schwarzbeck NNLK8140 V-LISN




  Topology: Single path V-LISN
  Frequency range: (9 kHz) 150 kHz - 30 MHz
  Impedance: 50 µH || 50 Ω (+/- 20 %)
  max. voltage (DC): 1000 VDC


max. voltage
(50/60 Hz AC) :

 1000 VAC


max. voltage
(400 Hz AC):

 500 VAC
  max. const. current: 800 A
  max. current (limited time): 1000 A
  Mains connectiors: 2 wing terminals M16x1.5 removable
  EuT connectors: 2 wing terminals M16x1.5 removable

  Length: 770 mm
  Width: 445 mm
  Hight: 505 mm
  Weight: 46 kg

  Standard: CISPR 16-1-2
